    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket

    Ask Lasest Price
    Brand Name : Tiejie
    Model Number : TJS40 TJS60 TJS200 TJS220
    Supply Ability : 500 Piece/Pieces per Month
    Price : $5,900.00/pieces 1-4 pieces
    • Product Details
    • Company Profile

    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket

    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    1. Specially designed for underwater screening of sand, gravel, stones, and washed sand. 2. Greatly reduces the depth of the rotating screen, increases the capacity of the bucket, and achieves one loading and two screening. 3. Its high productivity and durability can meet the needs of crushing operations in quarries, mines, and large construction sites.
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Model
    Unit
    TJS40
    TJS60
    TJS200
    TJS220
    Load Volume(drum)
    m³
    0.46
    0.57
    1
    1.2
    Drum Diameter
    mm
    800
    1000
    1200
    1400
    Bucket Opening
    mm
    920
    1120
    1400
    1570
    Height(with bracket)
    mm
    1335
    1730
    2165
    2290
    Bucket Total Length
    mm
    1557
    1764
    2336
    2557
    Weight
    kg
    618
    1050
    1835
    2400
    Screen Mesh size
    mm
    10/150
    10/150
    10/150
    10/150
    Rotating Speed(max)
    rpm/min
    60
    60
    60
    60
    Suitable Excavator
    Ton
    5~10
    11~19
    20~29
    30~40
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Our factory supports ODM&OEM. It would be even better if you could provide us with the drawings of the products you need. If you are not sure about the products you need, our customer service has been specializing in researching auxiliary tools for 20 years and will definitely provide you with a more suitable solution
    "Click to contact us"

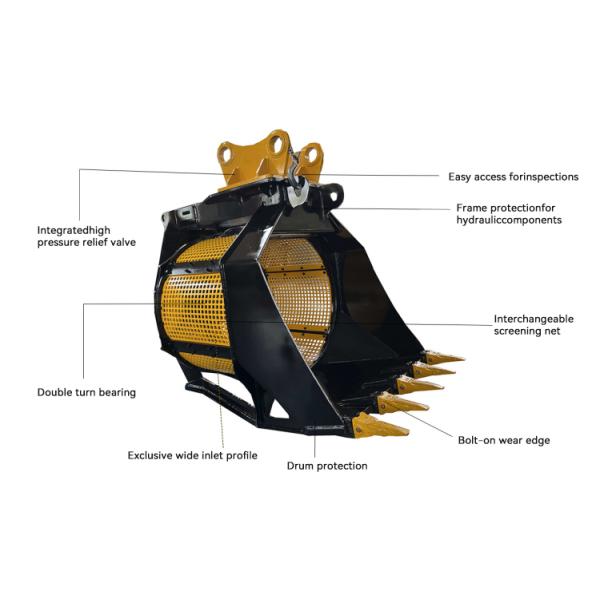

    Product Feature
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    1.Tiejia supports color, special-shaped screen customized. Screens are replaceable.Double bolts serve as reinforcement.
    2.With teeth is more suitable for screening stones, rock and construction work.Without teeth is more suitable for earthmoving, sieving soil, sand, etc.
    3.100% customized hitch.Hitch size is customized according to your excavator, 100% matching your machine.
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket

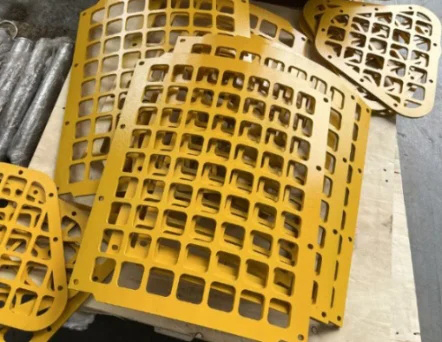

    4.Screen size can be customized according to working condition.(mesh is Integrated molding by laser cutting)
    5.Waterproof motor: closed protector, can be used on land works and under water.
    6.All buckets main material is made of wear-resistant steel plate, high screening efficiency, long service life.
    Product Display
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Product Details
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket

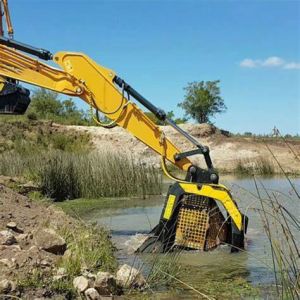

    Product Application
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Related Products
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Packaging&Shipping
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Company Resume
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    FAQ
    0.46 - 1.2 M3 Capacity Excavator Sieve Bucket Hydraulic Rotating Screen Bucket
    Q1: Are you a trading company or a manufacturer? A: We have our own factory. Q2: Can you produce non-standard or customized products? A: Yes, we can. Q3: What is your delivery time? A: Normally, if we have inventory, the delivery time is 7 days, and if not, it is 15-30 working days. But it also depends on product requirements and quantity. Q4: Do you provide samples? Are these samples free of charge? A: Yes, we can provide samples, but they are not free. Q5: What are your payment terms? A: 30% deposit wire transfer or irrevocable sight letter of credit. Q6: What is your after-sales service? A: After receiving the goods, we can provide remote installation guidance. If you have any questions, please feel free to contact us.
